Description

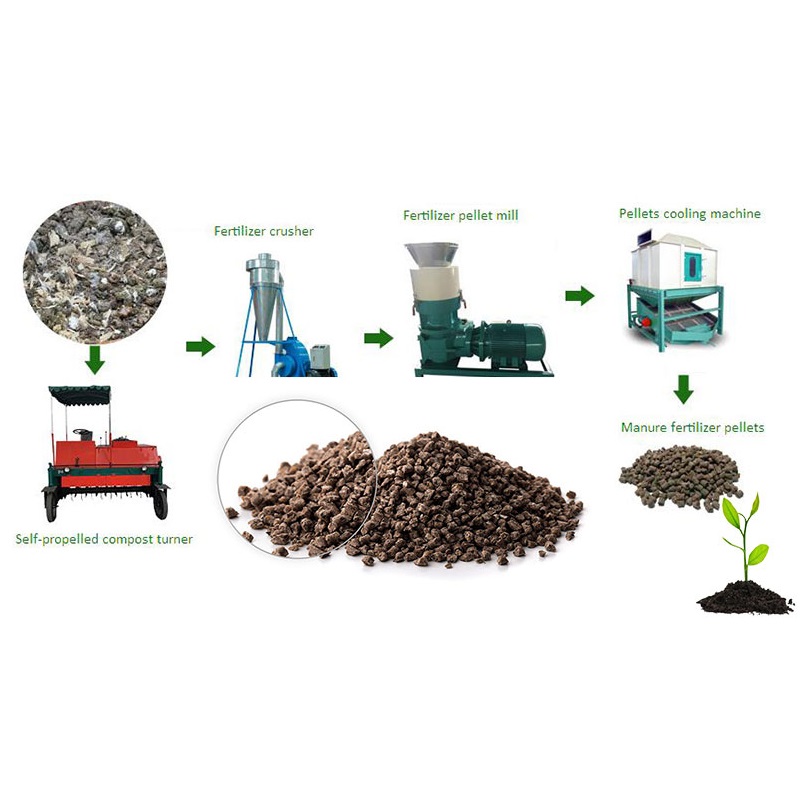

Compost Processing Line

he purpose of the system is to cut and shred raw materials, followed by mixing, blending and adding other materials in order to produce Compost.
The system consists of :
a. 1 Unit grinder
Capacity : 200 kg/hr
Tube : Dimension = 44 x 38 cm, Material 2 mm steel plate
Frame : UNP 5 cm and Mild Steel Plate Blades : Steel Plate 18 pcs
Transmission Pully B
Engine : 5.5 HP
b. 1 Unit Stifter
Capacity : 300 – 500 kg/h
Frame : UNP and Angels Steel Section Power : Electromotor 2 HP
Transmission : Gearbox, V-Belt and Pulley Dimension : 300 x 180 x 150 cm
c. 1 Unit Grinder Mills
Capacity 5 kg/ hr
Power 2200 Watt, Speed 1420 rpm Fineness 100 – 250 mesh size
Overall Dimension 90 x 70 x 78 cm
d. 3 Unit Conveyor Belt
Dimension: length = 400 cm; width = 60 cm; height = 50 cm
The body and Frame is made from combination of Aluminium, Steel and Stainlessteel
Motor : 1/2 HP , 230/460V — 3 phase — 60 Hz hidden blower
Belt : Rubber
Belt Speed : 20 meter per minute
e. 1 Compost Mixer
Capacity 200 kg/hr
Frame Material UNP 5, Cover Plate MS 3 mm, Stirrer Plate Strip 5 mm,
Dimension 100 x 150 x 120 cm
Transmission Puly V belt, Speed 3000 rpm.

Untuk Informasi lengkap Katalog kami link berikut,
