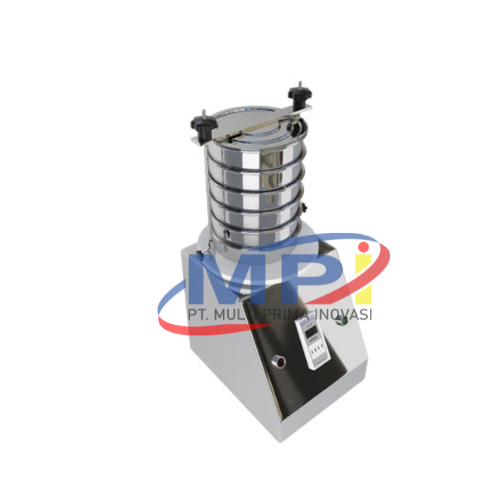

Pengocok saringan (Sieve shaker )

Description

Pengocok saringan (Sieve shaker )

* Applications: separation, fractioning, particle size determination
* Field of application: agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
* Feed material: powders, bulk materials, suspensions
*Measuring range: 20 µm – 25 mm
*Sieving motion: throwing motion with angular momentum
* Max. batch / feed capacity: 3 kg
* Max. number of fractions: 9 / 17
* Max. mass of sieve stack: 4 kg
* Amplitude digital: 0.2 – 3.0 mm
* Controlled amplitude: yes
* Time display digital: 1 – 99 min
* Interval operation: 10 s
* Storable SOPs: 1
* Suitable for dry sieving: yes
* Suitable for wet sieving: yes
* USB interface: –
* Including test certificate / can be calibrated: –
* Suitable sieve diameters 100 mm / 150 mm / 200 mm / 203 mm (8″)
* Max. height of sieve stack 510 mm
* Clamping devices: “standard”, “comfort”, each for wet and dry sieving
* Protection code: IP 54 / IP 20
* Electrical supply data: different voltages
* Power connection: 1-phase
* W x H x D: 417 x 212 x 384 mm
* Net weight: ~ 35 kg
* Standards: CE
* Include : Clamping device economy, Collecting pan, minimal test sieve 230/ 120,/60/18 mm mesh.
